Graphite Steel Rolls
Graphitic Steels are high carbon containing hypereutectoid Steels. They combine high strength with good wear resistance against fire cracking.
They are normalized and stress relieved for better mechanical properties.
These rolls have a negligible hardness drop.

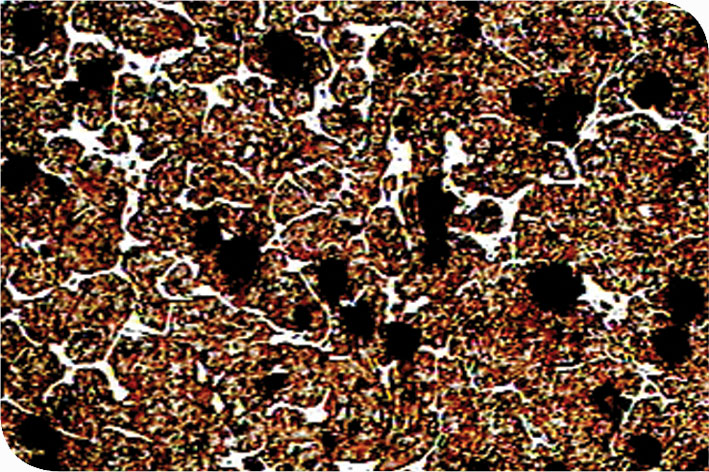

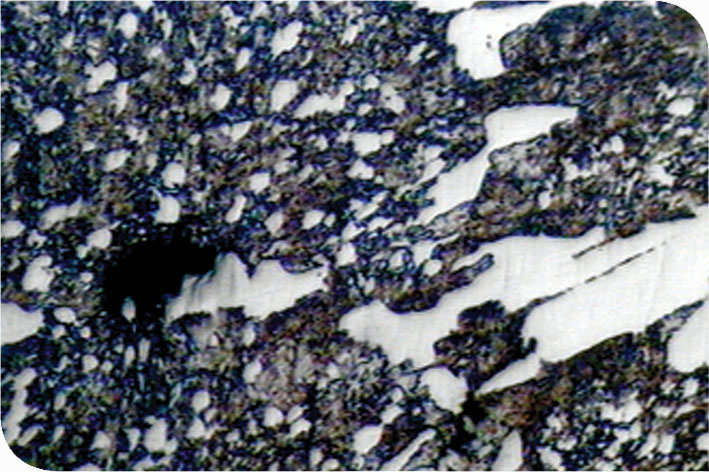

GS H50-Pearlitic matrix with and Graphitesand Secondary Carbide(x100)GS H50-Pearlitic matri
| Roll Grade | Barrels Hardness (ShC) | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | Mo (%) | Tensile Strength (N/mm²) | Bending Strength (N/mm²) |
|---|---|---|---|---|---|---|---|---|---|
| GSH40 | 40 | 1.5-2.5 | 0.5-1.5 | 0.5-1.5 | 0.5-1.2 | 0.5-2.0 | 0.2-0.8 | 500-750 | 700-1100 |
| GSH44 | 44 | 1.5-2.5 | 0.5-1.5 | 0.5-1.5 | 1.0-1.5 | 0.5-2.0 | 0.2-0.8 | 500-750 | 700-1100 |
| GSH48 | 48 | 1.5-2.5 | 0.5-1.5 | 0.5-1.5 | 1.0-1.5 | 0.8-2.5 | 0.2-0.8 | 550-750 | 800-1100 |
| GSH52 | 52 | 1.5-2.5 | 0.5-1.5 | 0.5-1.5 | 1.2-1.8 | 1.5-2.5 | 0.2-0.8 | 550-800 | 900-1200 |
| GSH56 | 56 | 1.5-2.5 | 0.5-1.5 | 0.5-1.5 | 1.2-1.8 | 1.5-2.5 | 0.2-0.8 | 550-800 | 900-1200 |
